ESD products are primarily used to prevent damage to electronic circuit boards and other ESD sensitive products from an electrostatic charge. Most of our ESD Worksurface Mats and all of our ESD Floor Mats are Made in the USA. Static control is critical during electronic assembly and manufacturing and that is where we can help, whether you need ESD Mats, ESD Finger Cots, ESD Gloves, ESD Bags, or ESD Tapes. We specialize in custom made ESD Mat Kits and ESD Tapes to meet you specific requirements. ESDproduct.com is known for quality products, fast delivery, and friendly service for over 30 years.

ESD Worksurface Mats are primarily available in rubber and vinyl material. ESD mats are classified by the speed of static dissipation which is defined in surface resistivity range. The surface resistivity is measured in ohms (Ω).

ESD Worksurface Mats:

ESDproduct.com offers a range of ESD Worksurface Mats and customized ESD Mat kits to meet the requirement of electronic industry. Some of our ESD Worksurface mats are:

ESD Foam Mats are made in the USA from a 3/8″ thick PVC foam material. They are available in blue color with a smooth surface. The surface resistivity of this mat is 10^7 – 9 x 10^8 ohms. They are available in rolls of 2’, 2.5’ and 3’ widths. ESD Foam mats kits include an ESD Foam mat, a wrist strap, and a ground cord.

ESD General Purpose Mats are made in USA from a single layer vinyl material. They are designed for general purpose application of an ESD protection. They are available in Blue or Gray colors with textured surface. The surface resistivity of this mat is 10^9 – 10^10 ohms. They are available in rolls of 2’, 2.5’, 3’ and 4’ widths. ESD mats kit include an ESD general purpose mat, a wrist strap, and a ground cord.

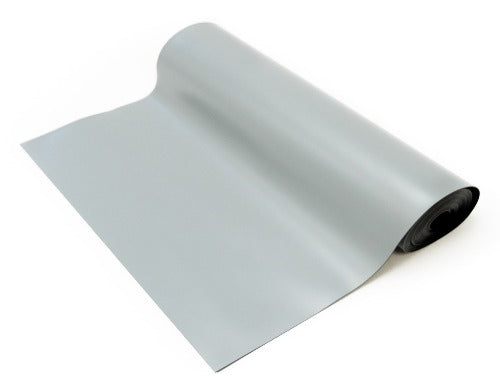

ESD High Temperature Mats are made in the USA from a two layer rubber mat with a blue or gray top layer with black bottom. They are soft and can be used for soldering applications. They offer a Resistance-to-Ground (Rtg) of 10^8– 10^9 ohms and Point-to-Point Resistance (Rtt) of 10^5 – 10^8. They are available in rolls of 2’, 2.5’, 3’ and 4’ widths. Custom made ESD mats kits include an ESD high temperature mat, a wrist strap, and a ground cord.

ESD Soldering Mats are designed for soldering applications in an electronic assembly or repair environment. They are available in blue or green color with a smooth surface. They offer a Resistance to Ground (Rtg) of 10^8– 10^9 ohms and Point-to-Point Resistance (Rtt) of 10^5 – 10^6. They are available in rolls of 2’, 2.5’, 3’ and 4’ widths. Custom made ESD mat kits include an ESD soldering mat, a wrist strap, and a ground cord.

ESD Three Layer Mats are made in USA from a three layer solid vinyl material with a buried conductive layer in between. They are available in blue or gray colors with a textured surface. The surface resistivity of this mat is 3 x 10^7– 9.5 x 10^8 ohms. They are available in rolls of 2’, 2.5’, 3’ and 4’ widths. Custom made ESD mat kits include an ESD three layer mat, a wrist strap, and a ground cord.



Conductive and ESD Floor Mats:

Conductive Floor Mats are made in the USA from a homogeneous matrix of PVC material. They are black in color with pebble embossed pattern. The surface resistivity of this mat is less than 10^6 ohms. They are available in rolls of 3’ and 4’ widths. Custom made Conductive Floor mat kits include a conductive mat, a heel grounder, and a ground cord.

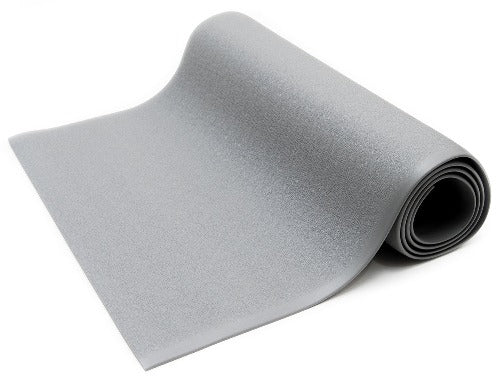

ESD Anti Fatigue Floor Mats are made in the USA from a 3/8” thick closed-cell expanded PVC material. They are designed to provide comfort and reduce worker fatigue when used in a static sensitive environment. The surface resistivity of this mat is 10^8– 10^9 ohms. They have a textured surface and are gray in color. They are available in rolls of 3’ and 4’ widths. Custom made ESD Anti Fatigue floor mat kits include an esd anti fatigue mat, a heel grounder, and a ground cord.

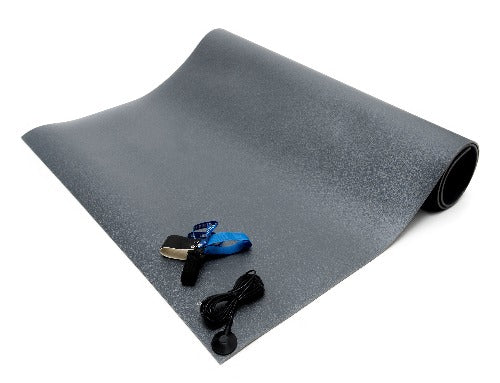

ESD Chair Mats are made in the USA from a rigid solid vinyl with a buried conductive layer. These ESD Chair mats provide superior physical properties along with the rigidity needed for today’s office environment. The surface resistivity of this mat is 10^8– 10^9 ohms. They are available in rolls of 3’ and 4’ widths. Custom made ESD Chair mat kits include an ESD chair mat, a heel grounder, and a ground cord.

ESD Floor Runners are made in the USA from a gray color homogeneous polymer mix of durable PVC with ESD properties. They are designed for production assembly rooms where an ESD safe area is required. The surface resistivity of this mat is 10^8– 10^9 ohms. They are available in rolls of 3’ and 4’ widths. Custom made ESD Floor Runner kits include an ESD floor mat, a heel grounder, and a ground cord.
